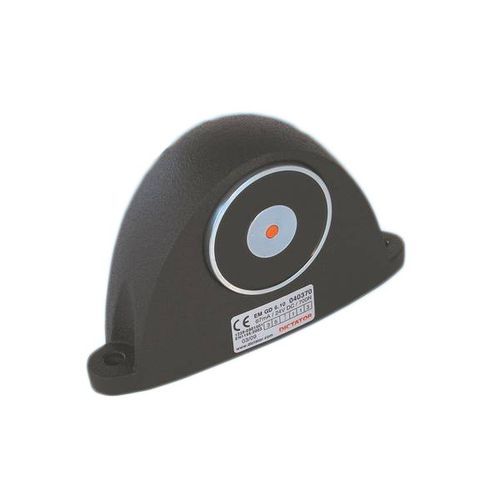

Electromagnets for installation on the floor
Sturdy and robust cast aluminium casing , perfect for this installation position, as the electromagnet can be exposed to impacts or water
Rust-free material
Can be furnished either with or without release key on the back of the casing
Equipped with a spark extinction diode as standard: in case of faulty connection, the integrated polarity protection prevents the spark extinction diode from being destroyed
As counter piece for the electromagnet, a counter plate has to be fixed on the door
All electromagnets with ‘LE 07016’ in their description have been tested according to EN 1155
Product information
Voltage24 VDC +/-10 %
Power consumption67 mA (1.6 W)
Temperature range-20 °C to +60 °C
Surfacezinc-plated; aluminium
Holding force700 N
Remanence0 N
Duty cycle100 %
