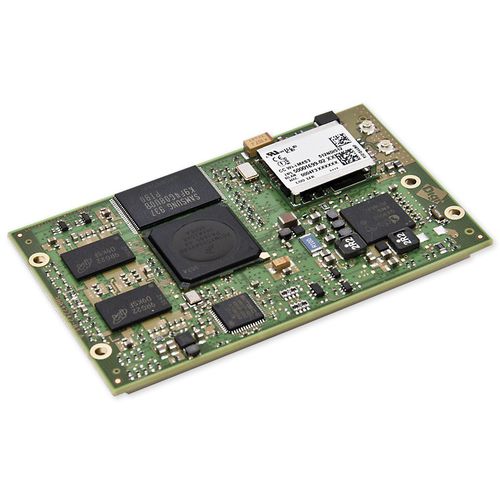

i.MX computer-on-module / ARM Cortex-A8 / DDR2 SDRAM / SATA
ConnectCore® i.MX53 / Wi-i.MX53 Digi International



  • Processor:

    i.MX, ARM Cortex-A8

  • Ports:

    DDR2 SDRAM, SATA, USB 2.0, Ethernet

  • Other characteristics:



The network-enabled ConnectCore for i.MX53 is a highly integrated and future-proof system-on-module (SoM) solution based on the new NXP/Freescale i.MX53 application processor with a high performance 1 GHz ARM Cortex-A8 core, wired and wireless connectivity, powerful 1080p/720p video encoding/decoding capabilities, dual-CAN bus interface and a complete set of peripherals.

The ConnectCore for i.MX53 family builds on the successful ConnectCore for i.MX51 modules by providing a form factor compatible option with significantly improved processing, memory, video and connectivity capabilities. It is a scalable and energy-efficient module family that is ideal for medical devices, security/surveillance equipment, industrial applications, kiosk systems and digital signage integration.

The ConnectCore for i.MX53 modules combine industry-leading performance, low power consumption and easy design integration with key features like integrated power management IC, on-chip multimedia support, including multi-format 1080p video hardware decoding, 2D/3D graphics acceleration, dual display/camera interface, hardware encryption engine, 802.11abgn Wi-Fi interface (150 Mbps), Bluetooth 4.0 with HDP support, dual 10/100 Ethernet option, dual-CAN bus, SATA II storage interface and a comprehensive set of additional peripherals.
