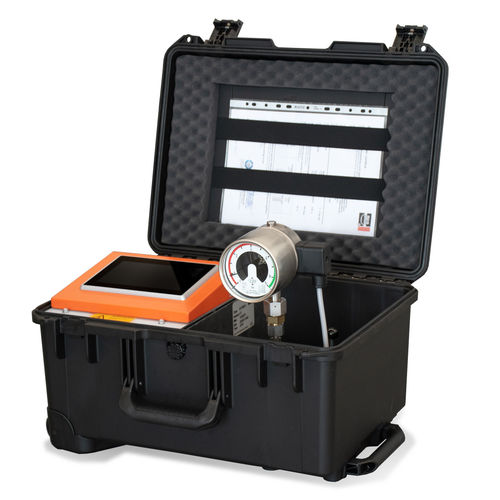

Density monitor testing device B178R01

pressuredensityautomatic

The F-gas regulation (EU) 517/2014 stipulates regular verification of density monitors installed in switchgear. The DensiControl DA allows quick checking to see whether the density monitor switching points are triggered in time. This device allows precise, quick and easy verification of the switching points. The density monitor to be tested is mounted onto the device by means of a quick clamping device or a plug-in coupling (depending on the connection). After starting the measurement the pressure is automatically increased to filling pressure, the switching points are activated and recorded. The switching points can be stored in the system with serial number and temperature indication allowing a data file to be produced for documentation. Advantages & functions • Automatic test process • Simple installation and removal of the density monitors by quick clamps • Easy handling and menu navigation via capacitive colour touch panel (7“) • Storage of 50 density monitor types with their corresponding switching points • Storage of up to 200 measuring results • Data transmission to USB stick and data output as a test report • Indicating pressure units can be selected • Adjustable user languages: DE, GB and FR • Trolley for comfortable transportation • Optional remote control via mobile devices Technical data Mains fuse : 2 x 3.15 A (T) (slow-blow) Dimensions (W x H x D) : 538 x 269 x 406 mm Weight : 17 kg Frequency : 50 - 60 Hz Accuracy : Accuracy of the pressure sensor (0 - 50 °C): ≤ 0.1 % FS Interface : USB and Ethernet Operating voltage : 100 - 240 V Operating temperature : 0 to +45 °C
