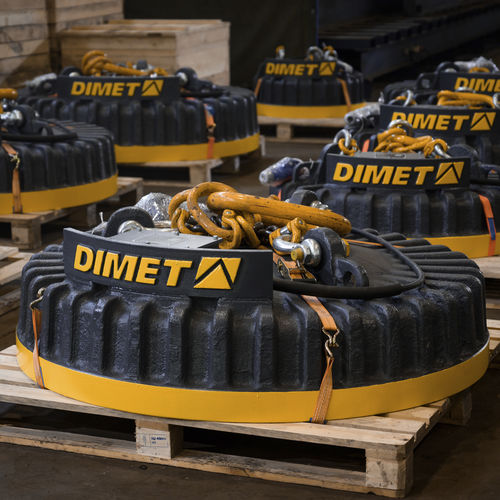

Metal scrap handling electro lifting magnet EMG SM

electrically switchedfor materials handlersfor cranes

Circular EMG SM scrap magnets for lifting of scrap, turnings, metal charge, shredder bundles, heavy melt, railscrap. - Cast housing with cooling fins has a large heat transfer area to prevent overheating of the electromagnet during operation and extends its duration. - Coil wire with improved insulation greatly reduces the risk of interturn short-circuit. - High-quality casting compound prevents electrical breakdown between coil wire and housing and reduces the electromagnet coil heating. - Reinforced armor plate protects the coil and extends service life of the electromagnet. Heat resistant version (cargo temperature up to 650 ℃ / 1200 F) as an option. 75% Duty cycle — 24/7/365 operation. Sizes 34-67’’ in stock are available for fast shipping. Example of model range: EMG-135 SM - 53'' scrap lifting magnet Lift capacity on scrap: 1030 kg / 2270 lbs Case diameter 1350 mm / 53'' Weight: 1750 kg / 3850 lbs Current, A: 46 DC voltage, V: 230 Coil material: Aluminium
