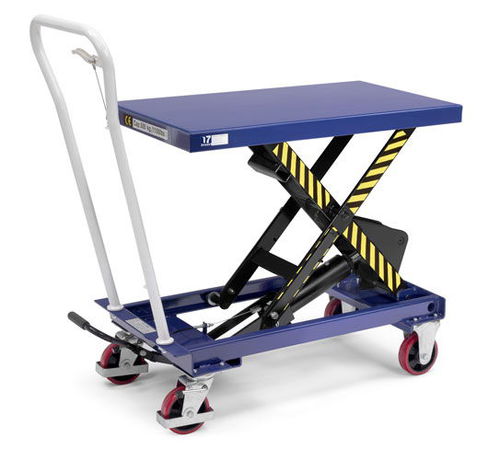

Scissor lift table MS series
hydraulicmanualfoot-operated

scissor lift table
scissor lift table
Add to favorites
Compare this product


Characteristics

Technology
scissor
Operation
hydraulic, manual, foot-operated
Type
mobile
Application
loading
Capacity

150 kg, 200 kg, 300 kg, 500 kg, 1,000 kg
(330.7 lb, 440.9 lb, 661.4 lb, 1,102.3 lb, 2,204.6 lb)

Lifting height

Min.: 220 mm
(9 in)

Max.: 1,400 mm
(55 in)

Description

Lifting system by simple scissor mechanism with bearings without maintenance. The lifting force is produced by a single oil-hydraulic cylinder with a chromed plunger anchored inside the scissor mechanism and driven by a manual double-acting pump pedal.This reduces the stress and fatigue caused by handling loads. The lowering is done by a nut system. Safety function of «present operator» the table stops if the operator does not press directly the control. Safety steel structure with lower frame. 2 steering wheels with foot protection next to handle and 2 fixed castors. Steering wheels with wheel stops. Wheels are made of polyurethane. Folding handle for MSA0058. Supplied in Blue Ral5002 and ready to use. All tables are fully compliant with European safety regulations.
