DC drive
3A, PWM | SuprAmpD
Diva Automation

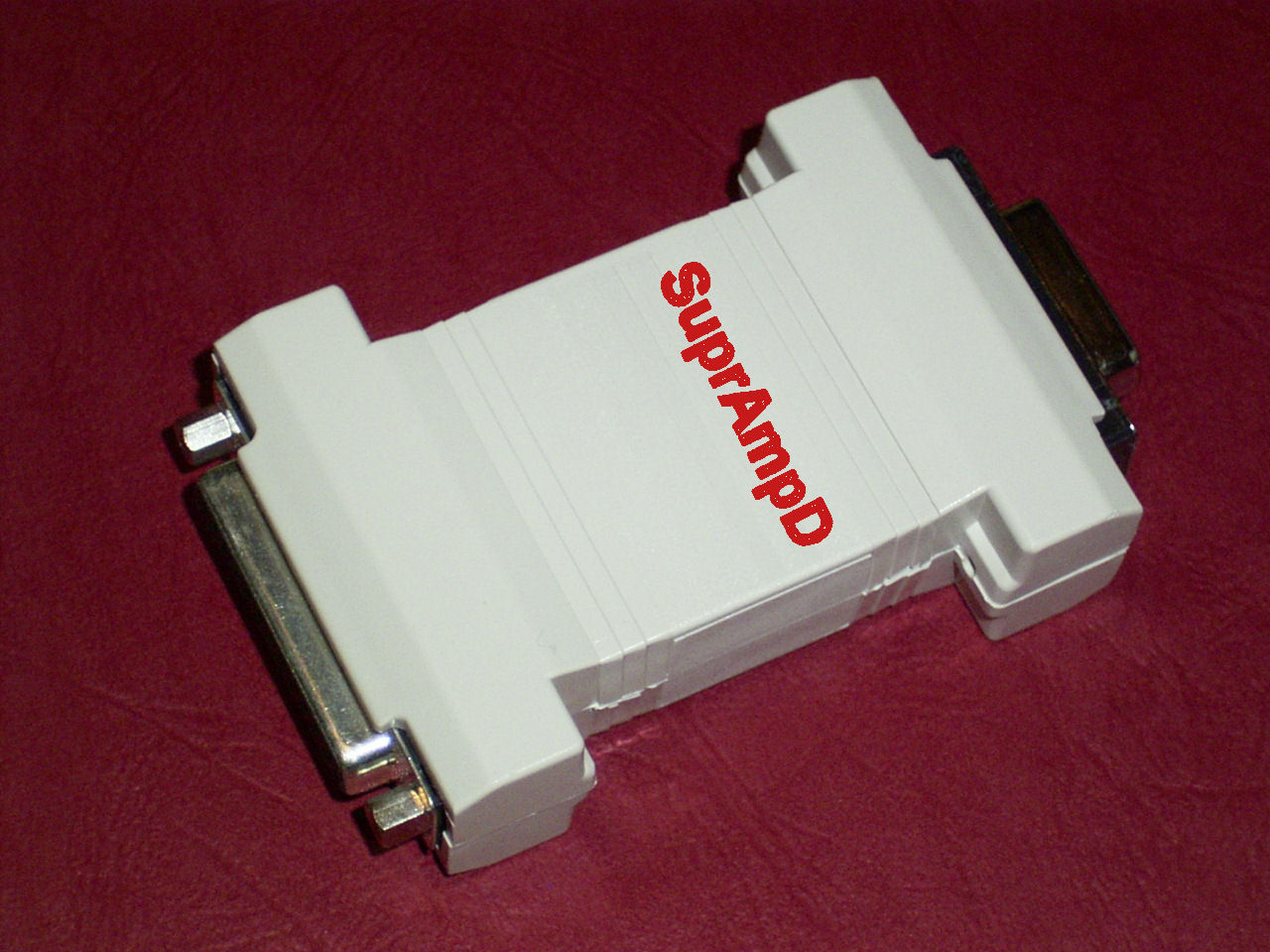

The SuprAmpD is a 3A, 55V PWM driver specifically designed for motor control. The motor driver features include limit switch support as well as pass-through wiring for position encoder signals to a motion controller. Individual LEDs display the status of limit switches and encoder activity.
The SuprAmpD is a PWM amplifier intended primarily for use in driving small DC motors. Its "Supr" feature consists of optically coupled inputs from limit switches to prevent accidental motion beyond safe physical operating limits. The active state of the limit switches may be modified by on-board jumpers. When a limit switch is activated, no further drive is possible in the direction of that switch. However, drive in the opposite direction is unaffected.
-
