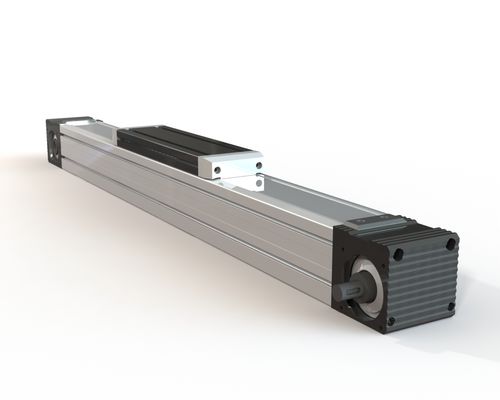

Skate wheel linear guide 100x100steelcompact
Add to favorites
Compare this product
Characteristics
- Technology
- skate wheel
- Other characteristics
- steel, compact
- Rail length
Min.: 0 mm
(0 in)Max.: 7,300 mm
(287.4 in)- Rail width
101 mm
(3.98 in)
Description
Product Description It is suitable to use in areas that require high load. İts design provide to protection from dust and particles in the ambient. Offered as an optional extra sheet protection, the module has been made more resistant to external influences. .It is long-lasting linear motion system which is preferred in requiring long-stroke machines in the coordinate axes and the severe business environment
Technical Specifications
Body; Aluminum (6063) 100x100 Profile
Speed; Vmax = 5m/sn
Drive; timing belt
Timing Belt; 8m-50 Steel Wire Polyurethane
Pulley; Z24-8m-50ftrig
Linear Rail; 25 is mm
Linear Block; 25-Large
Protection; Self-feature compact design and easy maintenance (lubrication system)
Sensitivity; 0.02 mm
Engine Option; Geared Motors Servo-Step
