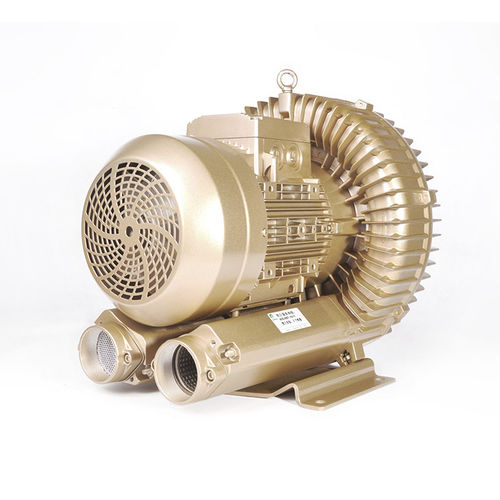

Vacuum blower GHBH 004 34 1R7airside-channelimpeller
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel, impeller
- Number of stages
- single-stage
- Applications
- transport, for vacuum, conveying, regenerative, cooling, drying, for food applications, for ventilation, for vehicles, for chemicals, heavy-duty, suction
- Voltage / frequency
- 220 V / 50 Hz, 220 v / 60 Hz, 380 v / 50 Hz
- Other characteristics
- oil-free, compact, three-phase
- Flow
318 m³/h, 376 m³/h
(11,230.06 ft³/h, 13,278.31 ft³/h)- Operating pressure
Min.: -260 mbar
(-3.771 psi)Max.: 270 mbar
(3.916 psi)- Nominal power
3 kW, 3.45 kW
(4.079 hp, 4.691 hp)- Sound level
69 dB, 72 dB
- Weight
34 kg
(74.96 lb)
Description
Phase: Three
Frequency:50/60(Hz)
Rated Power:3.0/3.45(kW)
Rated Voltage:200-240△345-415Y|220-275△380-480Y (V)
Rated Current:12.5△/7.2Y|12.5△/7.3Y(A)
Max AirFlow: 318/376 (m3/h)
Max Vacuum:-260/-240 (mbar)
Max Pressure:270/230 (mbar)
Sound: 69 dB(A)
Weight:34 (kg)
Why choose GOORUI blower?
High efficiency motor；
IP55 & Insulation class H；
Built-in Thermal Protector(PTC)；
High Temperature-Resistance bearing；
Special customized blower and OEM available；
24 months warranty and long-term technical support；
CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
