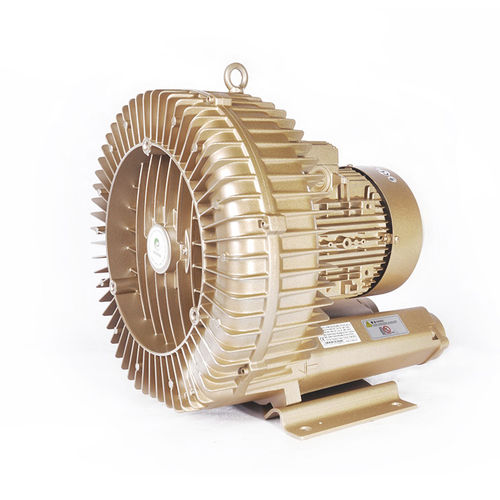

Vacuum blower GHBH 5D7 36 1R8airside-channelsingle-stage
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel
- Number of stages
- single-stage
- Applications
- for vacuum, regenerative
- Voltage / frequency
- 380 v / 50 Hz, 380 v / 60 Hz
- Other characteristics
- three-phase
- Flow
530 m³/h, 620 m³/h
(18,716.77 ft³/h, 21,895.09 ft³/h)- Operating pressure
Max.: 160 mbar
(2.321 psi)Min.: -200 mbar
(-2.901 psi)- Nominal power
4.3 kW, 4.6 kW
(5.846 hp, 6.254 hp)- Sound level
70 dB, 74 dB
- Weight
54 kg
(119.05 lb)
Description
Phase: Three
Frequency:50/60(Hz)
Rated Power:4.3/4.6(kW)
Rated Voltage:345-415△600-690Y |380-480△660-720Y (V)
Rated Current:9.5△/5.5Y | 9.5△/5.5Y (A)
Max AirFlow: 530/620 (m3/h)
Max Vacuum:-200/-160 (mbar)
Max Pressure:200/160 (mbar)
Sound: 70 dB(A)
Weight:54(kg)
Why choose GOORUI blower?
High efficiency motor；
IP55 & Insulation class H；
Built-in Thermal Protector(PTC)；
High Temperature-Resistance bearing；
Special customized blower and OEM available；
24 months warranty and long-term technical support；
CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
