Roadheader
96 t | Mk4
Dosco Overseas Engineering Ltd.

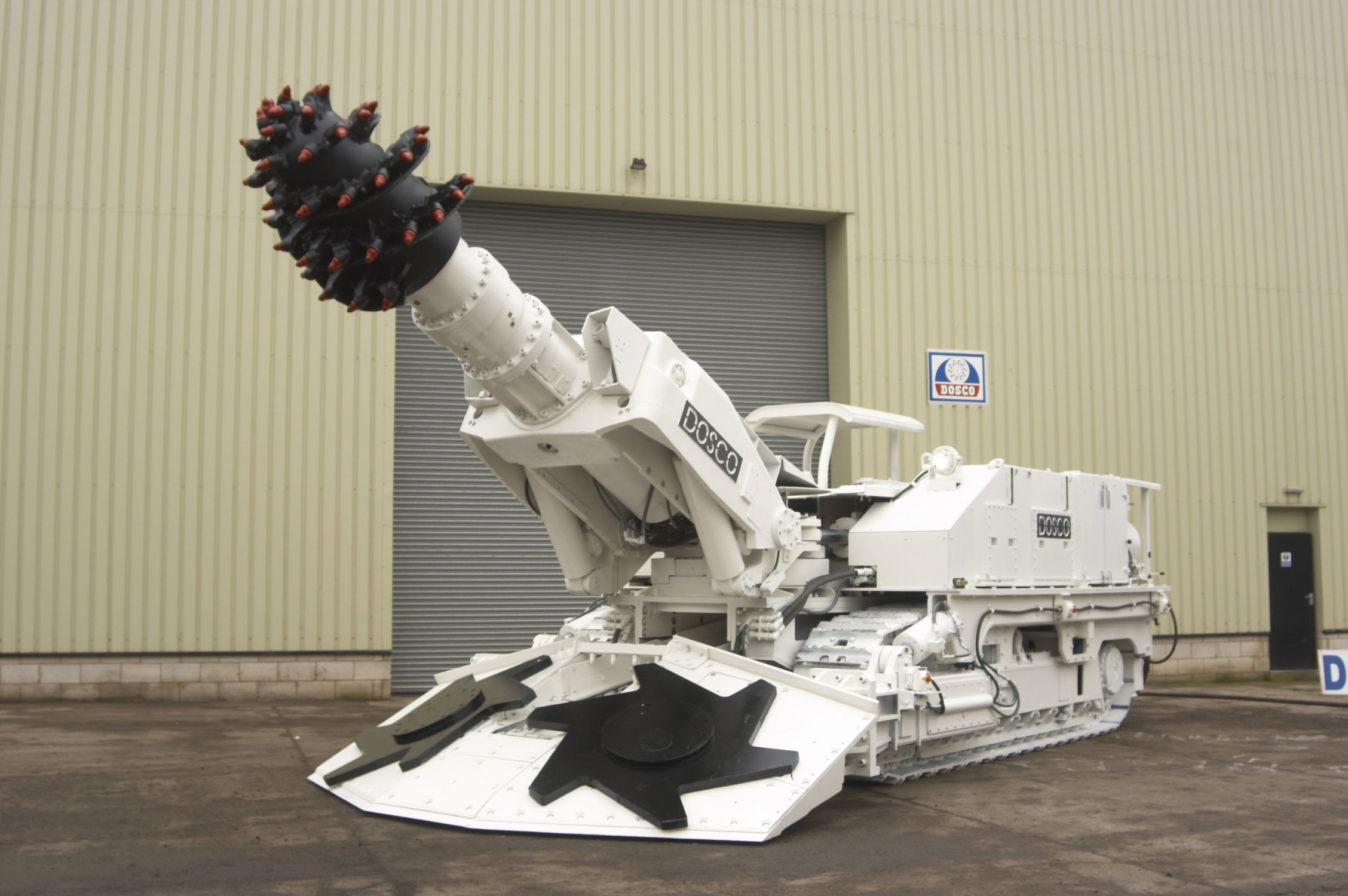

The Dosco Roadheader MK4 is a heavy duty, track mounted, single boom Roadheading machine designed to carry out mechanised preparatory excavation work in both mining and civil engineering applications.
The 96 tonne machine is designed to give greater strength and power to the well proven cutting boom principle. A powerful boom assembly with high arcing and lifting forces enables the machine to cut harder strata's in roadways up to 5,300 mm high.
The machine is of sectionalised design and bolted construction for ease of maintenance and on-site dismantling and transportation.
Electro-hydraulically powered, the machine is self-contained except for the power feed cable supplying, through switchgear panels, the electric cutter motor, power pack motor and conveyor drive motor.
Options include:
• Raised Pressure Water Systems - improved dust suppression, reduced risk of incendive sparking, increased cutter tool life.
• Operators Canopy - custom designed to suit individual application requirements.
• Gas Detection System
• Diagnostic Control System - monitors state of selected electrical and water functions.
• Coanda Air Curtain - retains dust forward of the
operators position for extraction by mine ventilation system
• Profile Indication System and Data Logging
The 96 tonne machine is designed to give greater strength and power to the well proven cutting boom principle. A powerful boom assembly with high arcing and lifting forces enables the machine to cut harder strata's in roadways up to 5,300 mm high.
The machine is of sectionalised design and bolted construction for ease of maintenance and on-site dismantling and transportation.
Electro-hydraulically powered, the machine is self-contained except for the power feed cable supplying, through switchgear panels, the electric cutter motor, power pack motor and conveyor drive motor.
Options include:
• Raised Pressure Water Systems - improved dust suppression, reduced risk of incendive sparking, increased cutter tool life.
• Operators Canopy - custom designed to suit individual application requirements.
• Gas Detection System
• Diagnostic Control System - monitors state of selected electrical and water functions.
• Coanda Air Curtain - retains dust forward of the
operators position for extraction by mine ventilation system
• Profile Indication System and Data Logging
