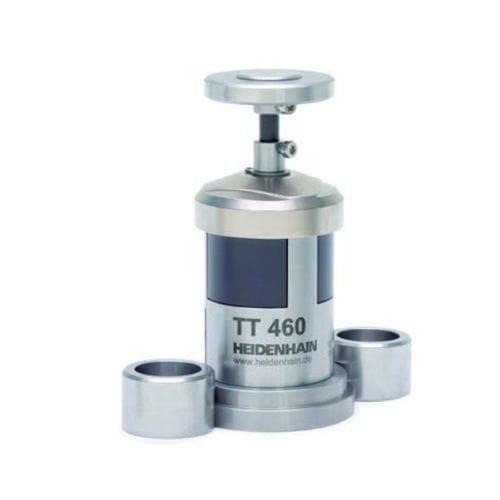

infrared touch probe / for machine tools
TT 160, TT 460 DR. JOHANNES HEIDENHAIN GmbH

{{requestButtons}}

Characteristics

  • Technology:

    infrared

  • Applications:

    for machine tools

Description

Probe accuracy
≤ ± 15 µm
Probe repeatability
Repeated probing from one direction
2 s ≤ 1 µm at a probing velocity of 1 m/min
Typical values:
2 s ≤ 1 µm at a probing velocity of 3 m/min
2 s ≤ 4 µm at a probing velocity of 5 m/min
Deflection of probe contact
≤ 5 mm in all directions
Deflection force
Axial: approx. 8 N
Radial: approx. 1 N
Probe velocity
≤ 5 m/min
Protection EN 60 529
IP 67
Operating temperature
10 °C to 40 °C
Storage temperature
–20 °C to 70 °C
