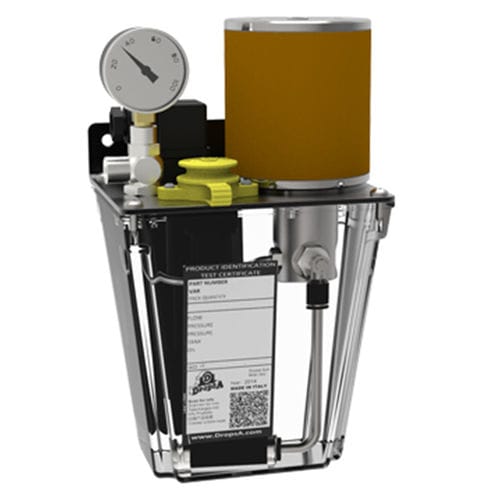

Oil lubrication unit 310313 series

centralizedpneumaticcompact

Pump series 3103135 is suitable for lubrication feeding systems. It can be installed on compressed system machines. Pump is controlled by a 3-ways electrovalve (line-cilindric-vent) and is available in four different types with specific flowrates and reservoir capacities. Pump is compact, miniaturized and economic: three characteristics which make this item very interesting!! Key features: - Air pressure: 4 ÷ 7 bar (59 ÷103 psi) - Air inlet: M 10x1 dual conical seat - pipe Ø 6 mm (0.2 in.) - Lubricant outlet: G 1/8" BSP - Lubricant: Mineral oil - Oil viscosity (at working temperature): 15 ÷ 1000 cSt (77÷4628 SUS) - Working temperature: + 5°C ÷ + 40°C (+ 41°F ÷ + 104°F) - Working humidity: 90 % max. - Storage temperature: - 20°C ÷ + 50°C (- 4°F ÷ + 122°F) - Sound pressure level: < 70 dB(A)
