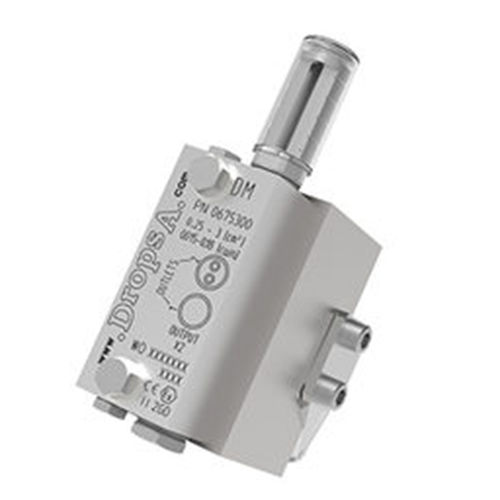

Modular valve DM-XOVER

stainless steelfor lubrication systemsdual-line

By using the DM- XOVER Sub-base, customers with traditional non modular dual line products can switch over effortlessly to the modular design concept and immediately take advantage of the numerous benefits this brings. The DM - XOVER product is sold pre-assembled with the dual line divider valve elements (from 1 to 4 depending on the model) installed. This can be installed directly into the pipe centers illustrated on the following diagram. Also included in the package are fixing brackets that can be used to anchor the sub-base plate if needed. Consider the following advantages: - Made in high quality hard nickel plated steel. 70 times more resistant than zinc plated steel. - Stainless Steel 316L available for ultra harsh environments - Micron level honing and grinding production process for high performance spool and body matching provides extended product life and high numbers of cycles. - Custom designed Viton sealing technology for a long leak free life - oil of grease. - Manufactured and assembled at our high-tech production facility and individually tested to exacting quality standard using the latest in industrial automation. Key Features: - Min. Viscosity: 100 cSt ( 462 SSU) - Grease Max: 265 ASTM - NLGI 2 - Connections: inlet : 3/8" NPTF outlet: 1/4" NPTF
