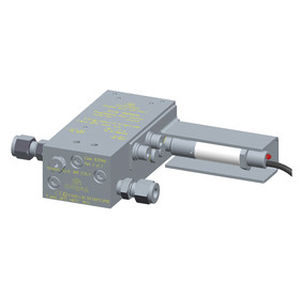

positive displacement flow meter / for oil / insertion
Dropsa spa

{{requestButtons}}

Characteristics

  • Technology:

    positive displacement

  • Fluid:

    for oil

  • Other characteristics:

    insertion

  • Process pressure:

    Max.: 400 bar (5,801.51 psi)

    Min.: 10 bar (145.04 psi)

  • Process temperature:

    Max.: 40 °C (104 °F)

    Min.: -20 °C (-4 °F)

Description

KEY FEATURES:

Max. measured flow rate: <= 3mA
Type of protection:Intrinsically safe
Max. number of readings: 100/min
Max. measured flow rate: 35 cc/min
Min. operating pressure: 10 bar (147 psi)
Max. operating pressure: 400 bar (5880 psi)
By-pass setting pressure: 40 bar (588 psi) differential pressure across measuring device

The Flow metering device is designed to volumetrically monitor small flow rates on low pressure lubrication systems. Its operation is based on the progressive system operating concept.

The displacement of a calibrated sequence of spools in the device, generated by the passage of the flow of oil, is detected by a proximity sensor.

The device is mounted on a base plate that allows its removal, calibration and substitution without the need to disconnect tubing.
