Oil lubrication system PRISMART

greasefluid greasecentralized

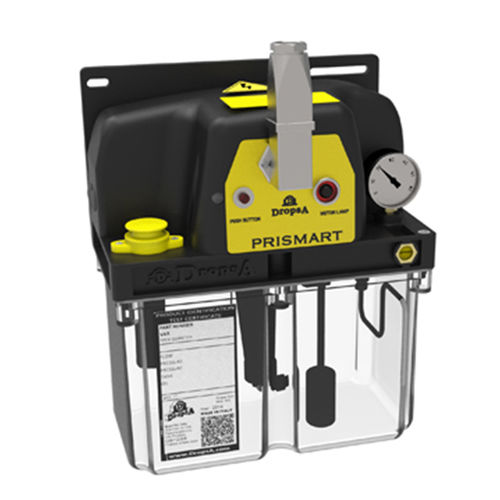

PRISMART O for oil and PRISMART FG for fluid grease are a pump package for integrated low cost OEM application. These pumps are ideal for appli-cation in Single Line, typically 33V injector systems. To facilitate the operations, all connection and command ele-ments have been positioned on the front part of the pump: 1. The connector for power supply and for the connection with PLC machine for remote lubrication control; 2. lubrication control button for direct control of the pump independently from the PLC machine; 3. Red light for pump functioning control. Key features: - Max Delivery: 220 cm³/min (13,45 cu.in.)/min - Max pressure: 30 bar (411 psi) - Prismart O for oil: - min. 68 cSt - max. 320 cSt - Prismart FG for fluid grease: - max. NLGI 00 - Voltages: 110 or 230 V / 50 and 60 Hz. - Standard minimum level: with capaci-tance sensor for light grease version, with Samba level sensor for oil version. - Pressure gauge: mounted on the pump at 60 bar (882 psi) - Pressure switch: as standard (N.O.) to detect system in pressure.
