Temperature calibrator FLUID 200-H

for temperature sensorsportabledigital

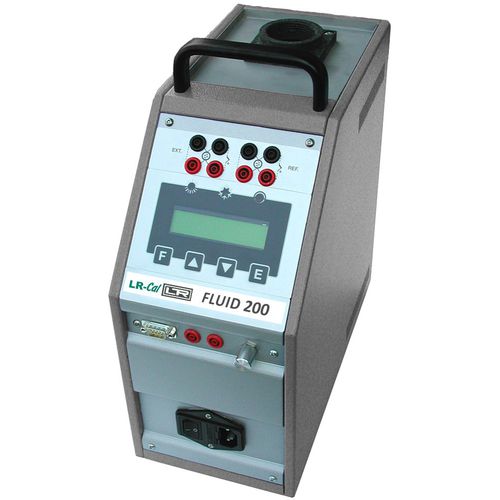

The LR-Cal FLUID 200-H is a portable stirred liquid bath (temperature calibrator). The instrument is suitable for calibrating temperature sensors and thermometers of all sizes, diameters and shapes, without the need of specifically drilled blocks. The calibration baths are perfect for checking and calibration of glass thermometers. Large calibration volume 500 cm³ Auto Ramp function, programmable Auto Step function, programmable Computer aided calibration via RS232 interface and optional PC software LR-Cal AQ2sp Switch test functionality Optional dry block and black body inserts available Temperature indication - Accuracy ±0.15°C Resolution 0.01°/0.1° (°C or °F) Stability of regulated temperature - ±0.03°C at 150°C Heating - max. 10°C per minute Cooling - max. 4...5°C per minute Temperature uniformity - radial: ±0.05°C at 150°C and 50 mm depth; axial: ±0.05°C at 100°C and 60 mm from bottom Calibration liquid - <80°C: water <125°C: silicone oil 200C5 <220°C: silicone oil 47V100 Liquid reservoir - Usable reservoir depth 170 mm x container opening diameter 54 mm Power consumption - 500 VA Interface - RS232 Reservoir material - aluminium Reservoir volume - approx. 500 cm³ Housing material - metal Weight - approx. 8 kg Dimension - 160 x 340 x 330 mm
