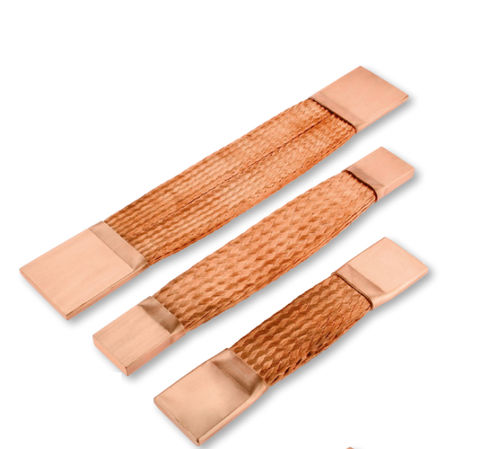

Electrical power supply connector 029 series
rectangularcopperbus bar

electrical power supply connector
electrical power supply connector
electrical power supply connector
Add to favorites
Compare this product


Characteristics

Type
electrical power supply
Shape
rectangular
Material
copper
Product applications
bus bar
Other characteristics
flexible

Description

Highly flexible connectors in solderless pressed design Standard design Uncoated E-Copper braid, highly flexible (wire Ø 0,07/0,10 mm) with solderless pressed contact areas made out of uncoated, seamless E-Copper/Copper-ETP tubes. Contact areas Contact areas rectangular with bending protection (standard). Without or bending protection only on one side on request. It is also possible to change the lengths and the widths of all contact areas. In special design we deliver connectors with contact area width 140/150/160/180 and 200 mm too. Drilling Standard design without drilling. Drilling on request according to druseidt-type I-III or customer requirements. Lengths Individual acc. to customer requirements. Insulation Insulated design on request. Standard material is a PVC-hose. Materials like silicone, glass-fibre- or shrinking tubes etc. on request. Liquid protected design Additional liquid protected design on request. Special designs In special design we deliver also connectors made out of tinned wires or with coated contact areas (tin-, nickel-, silver- or gold plated) or in coordination with your application according to your drawings/samples or wishes. When placing an order please specify • druseidt-Part-No. • total length • If drilling is needed either druseidt-design I-III or acc. to your drawings or sketches. • If insulation hoses are needed please add the word insulated behind the part-no. If you need another insulation material like PVC please specify this in your order. • If you need an additional protection against liquids please add the remark with liquid protection.
