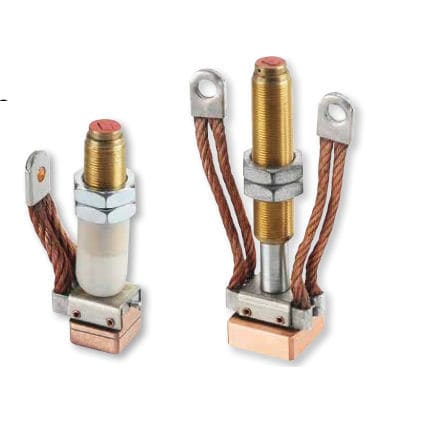

Carbon brush 350 series

carbon brush
carbon brush
carbon brush
carbon brush
Add to favorites
Compare this product


Description

High current carbon brushes suitable for mounting in linear adjustable telescopic holders Special material qualities are required to ensure the lowest possible loss of current transmission. The standard qualities we use are produced as a plate in a special pressing process and then machined. They can be supplied in both leaded and lead-free quality. Both versions are characterized by a high metal content and consequently high possible current densities of up to 40 A/ cm² resp. 28 A/cm². When using current transmission systems with telescopic holders, the high-current carbon brushes are suspended in a free moving manner and can therefore adapt well to the current roller, slip ring or contact strip. The contact pressure is transmitted by a pressure spring in the holder. The design of the carbon brushes is either with or without radius adapted to the intended use and supplied according to customer requirements. The telescopic holders can be mounted in a space saving way and offer a wide range of options. If possible, the telescope holders should be attached via an insulated bracket. The current should only be conducted via the stranded cables to avoid erosion in the holders. The diameter of the mounting hole for all listed holders is 22 mm. By means of the two nuts supplied, the current transmission system can then be linearly adjusted to the appropriate position and installed. Telescopic holders with either 50 N or 100 N spring forces are available. As contact pressure for the high-current carbon brushes we recommend a value of 2,5-4 N/cm² running surface.
