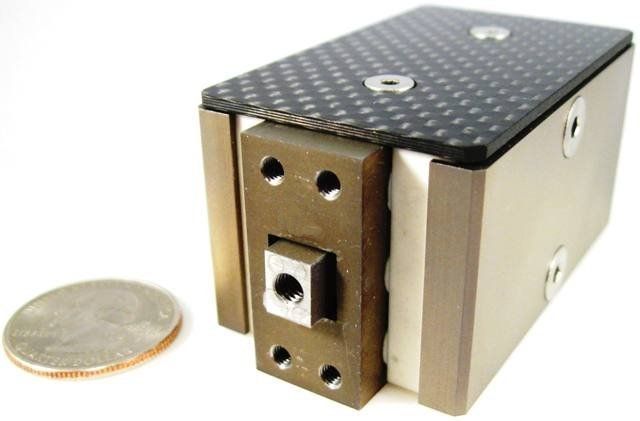

Piezoelectric linear motor
10 mm, 151 N | SQ-150 Series DSM

Total macro stroke: 10 mm (0.4 in). Actual value is determined by motor design. Designs can be configured for increased travel.
• Motion resolution: Sub-micron step capability- using micro stepping driver.
• Dimensions: Approximately 36 mm x 36 mm x 71 mm (1.4in x 1.4 in x 2.8 in) depending on force specification.
• Motor speed: Up to 150 mm/sec depending upon the motor architecture and driving frequency.
• Output force: 151 N (34 lb). The motor can be configured for power-off slip or power-off hold.
