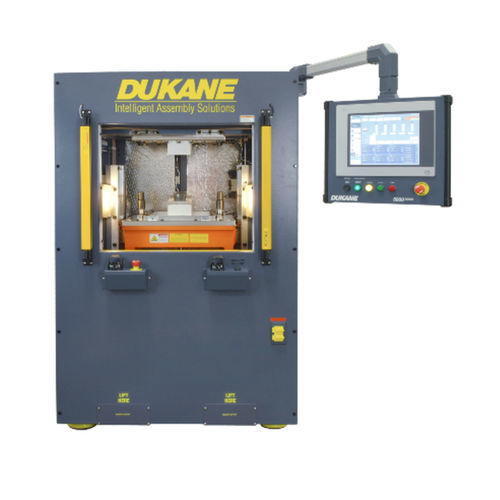

Vibrating welding machine VW5300

precisionprogrammable

This small machine packs all the features used in Dukane’s larger vibration welders into a smaller footprint when factory floor space is limited and the finished part size is 400mm x 500mm or less. This machine was made with manufacturing lean principles in mind. We kept the front width of machine small to reduce workstation to workstation distance. Efficient Process Control with Dukane’s Advanced HMI Software Provides real time graphing of amplitude, pressure, and collapse distance, which gives users additional control to monitor, evaluate and troubleshoot their vibration welding process. 15” color touchscreen HMI with remote I/O’s. Data logging, fault logging and event logging happens automatically. 100% traceability is easy with this controller. Reduce your Downtime and maintenance cost Dukane’s patented digital frequency drive delivers more power efficiency, reliability and flexibility for unique applications. Patented Q Factor for comprehensive tool and machine diagnostics and preventive maintenance. Machine routinely last more than 16 years. Ease of Use Intuitive and interactive comprehensive help menu with part parameter monitoring and programmable process limits. Weld by time or weld by distance welding modes. Multi-language support for English, Spanish, French, German, Czech, Chinese and Japanese. Interior work light. VW5300 features a fully welded rectangular steel tubing frame and lift table. The vibration bridge is flame cut from a single slab of 170mm thick steel, then precision machined to within 0.1mm. High strength tempered steel springs support the cast stainless steel lamination carriers.
