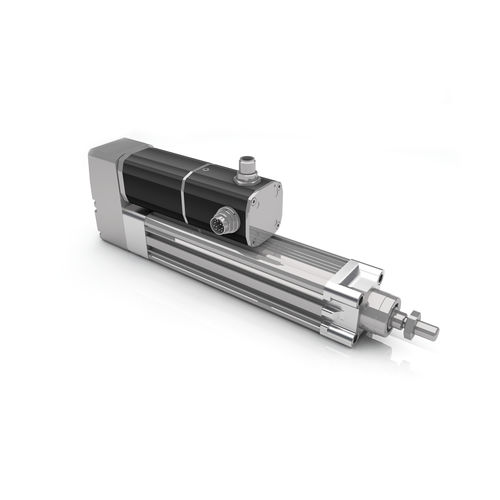

Linear actuator CASM-32 electricDCmotorized
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Motor
- DC
- Other characteristics
- motorized
- Stroke
Max.: 400 mm
(15.748 in)Min.: 50 mm
(1.969 in)- Force
Max.: 700 N
Min.: 0 N
- Torque
0.25 Nm
(0.184 ft.lb)- Speed
Max.: 5 m/s
(16.4 ft/s)Min.: 0 m/s
(0 ft/s)
Description
The CASM series is notable for:
» Twist protected thrust rod
» In-Line and parallel motor version
» Compact design
» Maintenance free
» Lead and ball screw version
» Easy position configuration (PI Motor)
» Several Bus-Interfaces available
» Very long lifetime
LINEAR ACTUATOR, SERIES CASM
Continuous stall forces: up to 5400 N*
Peak forces: up to 5400 N*
Stroke lengths:50 – 800 mm
Speed:up to 1 m/s
Acceleration:up to 6 m/s²
Repeatability:+/- 0,01 mm
Supply voltage:12 – 48 VDC
* with gear motor (on request)
