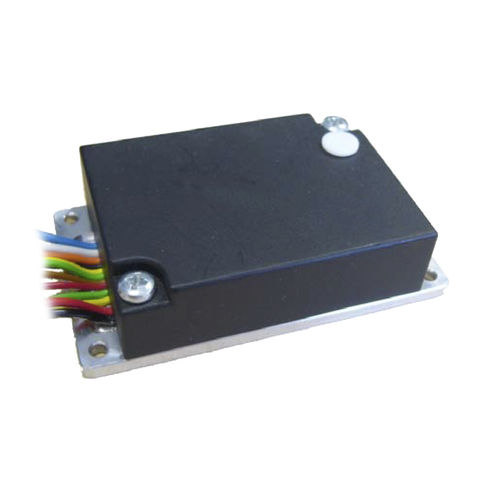

DC speed controller BGE 3004A
potentiometerintegrated2 analog inputs

DC speed controller
DC speed controller
DC speed controller
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Other characteristics
potentiometer, integrated
Input/output
2 analog inputs
Input voltage

Min.: 12 V

Max.: 40 V

Output voltage

Min.: 12 V

Max.: 40 V

Current

4 A

Description

There is an integrated potentiometer for setting the speed Two connection leads can be used to provide both a start/ stop and a clockwise/ counter-clockwise function By supplying an analog target voltage in the range 0...+10 V, the speed of rotation can be set in a range from 500 rpm to 5000 rpm Lower speeds, down to ca. 200 rpm, are possible where less smooth rotation can be tolerated Various protection functions, such as low-voltage cut-off, reverse-polarity protection, over-temperature cut-off, and stall protection, guarantee high operational reliability A signal with 4 pulses (2x 2 pulses) per revolution generated from the integrated Hall sensors will be provided

Catalogs

No catalogs are available for this product.

See all of Dunkermotoren GmbH‘s catalogs
