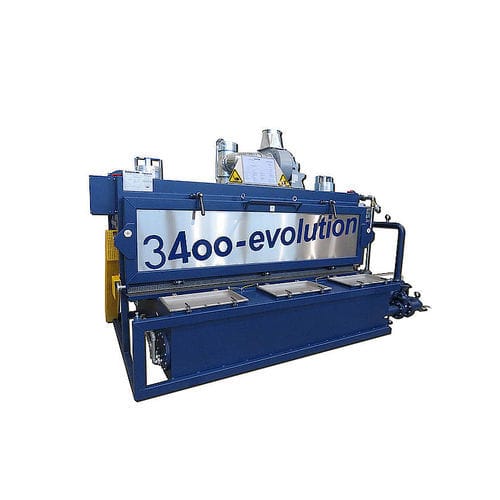

Explosion-proof cleaning machine 3400 / 3400W
solventsprayautomatic

explosion-proof cleaning machine
explosion-proof cleaning machine
explosion-proof cleaning machine
explosion-proof cleaning machine
explosion-proof cleaning machine
Add to favorites
Compare this product


Characteristics

Technology
solvent, spray
Operational mode
automatic
Applications
process, for the printing industry
Other characteristics
explosion-proof, ATEX, stainless steel, front-loading, with basket, with rinsing

Description

Explosion proof device, according to ATEX, for washing printing press parts with all common solvents Front-loading washing machine with closed washing chamber and integrated separate solvent supply Operating of machine is only possible with closed lift lid Loading in removable strainer basket (stainless steel) Washing spray system with oscillating rotating spraying pipes Fixed spray rinsing system Heavy-duty washing pump/ex-motor unit Removable filters for the protection of the spray system, the washing pump and the tubes Filling level control for integrated solvent reservoir (operating level / maximum filling level) Inner exhaust with heavy-duty ventilator and pneumatically controlled air intake and air mix valves Automatic washing program; including washing – dripping – rinsing – dripping – exhaust; all program steps can be selected individually Accessories – Type 3400 Mobile rack for strainer basket Support for gravure cylinders Tube rinsing device Self cleaning device Pneumatically operated lid Solvent cooling (thermostatic valve, water cooling or heat exchanger) Exhaust Solvent content concentration control and regulator system for connection to an exhaust air puryfier

VIDEO
