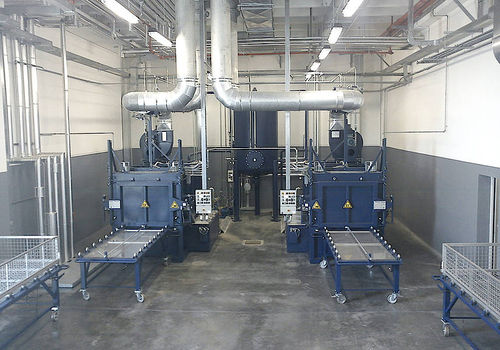

Explosion proof device, according to ATEX, for washing ink pumps with all common solvents
Front-loading washing machine with closed washing chamber and integrated separate solvent reservoir
Operating of machine is only possible with closed lift lid
Loading in removable strainer basket (stainless steel)
Washing spray system with oscillating rotating spraying pipes
Fixed spray rinsing system
Heavy-duty washing pump/ex-motor unit
Removable filters for the protection of the spray system, the washing pump and the tubes
Flap for inspection and maintenance on rear part of roof
Filling level control for integrated solvent supply (operating level / maximum filling level)
Inner exhaust with heavy-duty ventilator and pneumatically controlled air intake and air mix valves
Automatic washing program; including washing – dripping – rinsing – dripping – exhaust; all program steps can be selected individually
Accessories
Support for gravure cylinders
Mobile rack for strainer basket (fixed rack optional), both pneumatically retractable and liftable upon request
Tube rinsing device
Self cleaning device
Solvent cooling (thermostatic valve, water cooling or heat exchanger)
Exhaust
Solvent content concentration control and regulator system for connection to an exhaust air purifier
