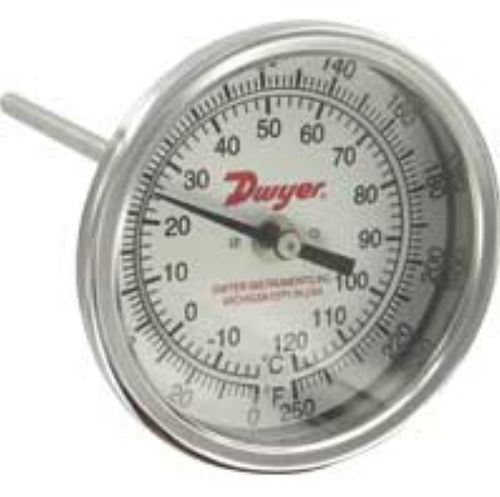

Bimetallic thermometer BTB series

adjustable dialinsertionindustrial

The Series BT Bimetal Thermometers offer accurate, reliable service even in the toughest environments. These corrosion resistant units are constructed from stainless steel and are hermetically sealed to prevent crystal fogging. The bimetal element directly drives pointer, eliminating gears and linkage. An external reset screw allows field calibration and easy-to-read aluminum dial minimizes parallax error. Choose back connection, lower connection or adjustable angle for easy viewing and installation. Adjustable models can be rotated a full 360° and tilted over a 180° arc. NOTE: When using in pressurized applications, use a suitable thermowell. PRODUCT APPLICATIONS Chiller or boiler water temperature monitoring Treatment plant temperature monitoring FEATURES Hermetically sealed Adjustable dial position models SPECIFICATIONS Wetted Materials:304 SS. Housing Material:Sériés 300 SS. Lens:Glass. Immersion Depth: Minimum 2" in liquids, 4" in gas.
