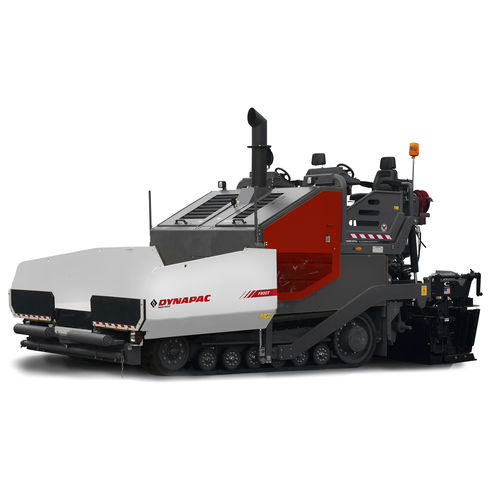

Asphalt paver F2500C
trackedconveyorfuel

asphalt paver
asphalt paver
asphalt paver
asphalt paver
asphalt paver
asphalt paver
asphalt paver
Add to favorites
Compare this product


Characteristics

Type
asphalt
Locomotion
tracked
Product applications
conveyor, fuel
Working width

Max.: 8.1 m
(26'06" )

Min.: 2.55 m
(8'04" )

Description

Introducing Dynapac F800T 8ft (2,44m) rubber track paver, a perfect addition to the existing highway class paver line. Dynapac F800T combines innovative features and decades of experience, making it as one of the best 8ft (2,44m) highway class pavers available in the US market. Masses Mass (incl. standard screed) - 17.8 t Weight - 15.2 t Traction Paving speed - 0 - 27 m/min Maximum paving speed - 60 m/min Transport speed - 14 km/h Engine Manufacturer/Model - Cummins QSB 6.7-173 Emissions according to - Tier 4F Type - 6 cylinder water cooled diesel engine with hydraulically driven fan Rated power, SAE J1995 - 129 kW (173 hp ) @ 2300 rpm Electrical system - 24V / 70A Generator (tractor mounted) - 34 kVA Fuel tank capacity - 320 l Operation Operator console - Dual Swing out Dashboard - Ergonomic dashboard with Multifunction display on each console Conveyor Conveyor type - Dual bar feeder Conveyor width - 2 x 510 mm Conveyor control - Two independent conveyor half's with infinitely variable speed. Both half's can be controlled separately. Conveyor control independent of Augers by Ultrasonic sensors.
