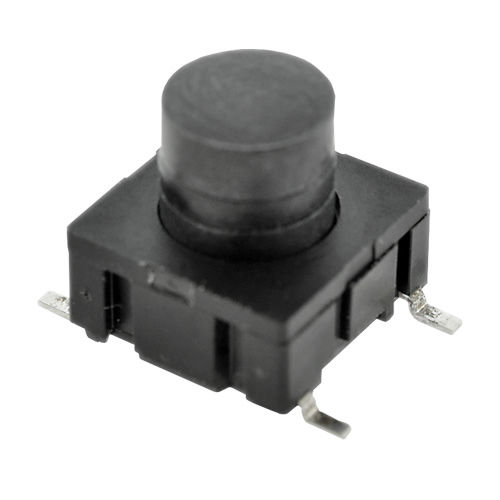

Touch switch TL6200 series

single-polewaterproofelectromechanical

The TL6200 Series tactile switch offers a long operating life of ten million cycles and is rated to IP67 standards, protecting against dust and moisture. This tact switch comes in both SMT (gull wing) and through-hole termination options. It offers multiple actuator lengths. If you order actuator options "B" through "G," the caps are shipped separately from the base switch and must be added after the base switch is soldered to the PC board. These long life tactile switches operate in temperatures ranging from -40 to 160°C. They measure 6.9mm x 6.2mm. Applications for this sealed tact switch include: • Audio/visual • Computer peripherals • Consumer electronics • Instrumentation • Telecommunications • Medical equipment FEATURES • Long life of up to 10 million cycles • Multiple actuator heights • SMT or through-hole termination • IP67 rating for dust and moisture protection
