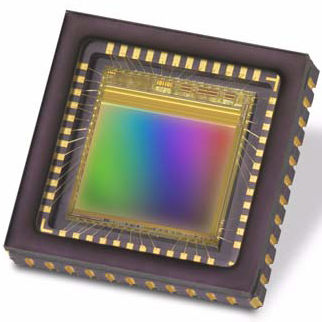

CMOS image sensor Sapphire 2M – EV76C570
full-colormonochromehigh-sensitivity

CMOS image sensor
CMOS image sensor
Add to favorites
Compare this product


Characteristics

Technology
CMOS
Spectrum
full-color, monochrome
Other characteristics
high-sensitivity

Description

This 1600 x 1200 pixel Sapphire CMOS image sensor, designed on Teledyne e2v’s proprietary Eye-On-Si CMOS imaging technology, is ideal for diverse applications where superior performance is required. The innovative pixel design offers excellent performance in low-light conditions with both electronic rolling shutter and electronic global shutter, with a high-readout speed of 50/60 fps in full resolution. Novel industrial machine vision application features such as multi ROI, histogram outputs and 3D range gating are embedded on-chip. Very low power consumption enables this device to be used in battery powered hand-held applications. The device is functionally, hardware and software compatible with the 1.3 million pixel EV76C560 device.

Catalogs

No catalogs are available for this product.

See all of e2v scientific instruments‘s catalogs
