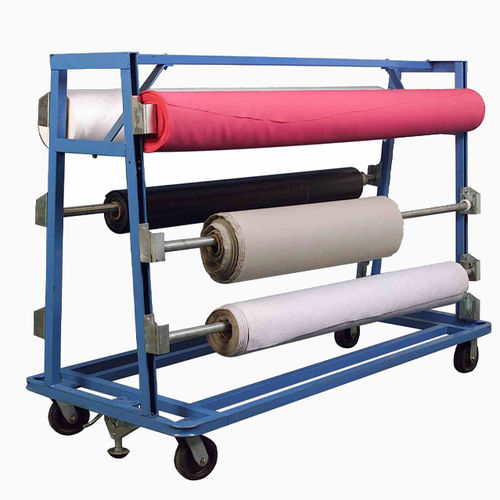

Fabric roll rack A-Frame

The A-Frame manual feeder is an economical solution for trouble-free spreading of different fabrics. The standard 78 inch wide model is fully portable with a total weight capacity of 2,000 lbs. (1000 lbs/453.6kg per side). Description • Fully portable, allowing goods to be unrolled directly from the A-Frame to the cutting table • Maneuverable narrow design with 6 inch (15.2cm) rubber caster wheels • 1-5/16” rotating roll bars equipped with ball bearing brackets • Optional cones available • Optional core reducers available • Optional heavy-duty 6 roll model available • Optional heavy-duty 8 roll model available Additional Information Width : 60 in. (1.52 m) 72 in. (1.83 m) 78 in. (1.98 m) – Standard stock model 84 in. (2.13 m) 96 in. (2.44 m) 102 in. (2.59 m) 108 in. (2.74 m) 126 in. (3.20 m) 132 in. (3.35 m) Contact factory for wider sizes available Maximum Rolls : 8 rolls (four on each side) Maximum Weight Per Bar : 250 lbs. (113 kg) Opt. Heavy-Duty 6 Roll: 330 lbs. (150 kg) Opt. Heavy-Duty 8 Roll: 375 lbs. (170 kg) Max. Outer Roll Diameter : 16 in. (40.6cm) Unit Height : 75.5 in. (192 cm) Unit Depth : 33 in. (84 cm) Disclaimer : Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice. main-product-image-layout : rectangular
