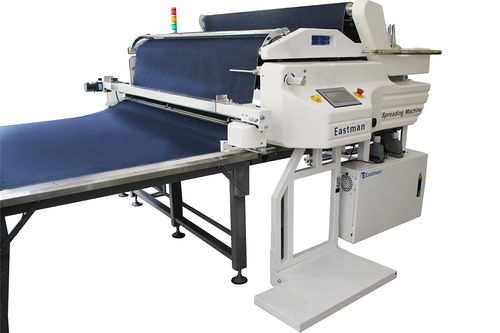

Automatic spreading machine ES-880

for textiles

The Eastman ES-880 Series Spreading System is suitable for all types of woven fabrics, and offers multiple functions for fast and easy spreading heights up to 7.9” (20cm). Available in several sizes, the ES-800 is the perfect solution for accurate spreads. • Spread one-way (face-up) or zig zag (face-to-face) • One-man operating • Dual material feeding to eliminate stretching • Static eliminator • Special cloth bar to remove air from nylons • Good for woven fabrics • Two-way catcher for dual-way spreading • Auto cutting control • Auto edge alignment • Auto Up & Down control Additional Information Spreading Width - Max : ES-800/6 ft. – 64 in. (1635mm) ES-880/7 ft. – 76 in. (1935mm) ES-880/8 ft. – 88 in. (2255mm) Table Width : ES-660/6 ft. – 72 in. (1830mm) ES-660/7 ft. – 84 in. (2130mm) ES-660/8 ft. – 96 in. (2430mm) Spreading Speed : 106 yard / min. (97m / min) Maximum Spread Height : 7.87 in. (20 cm) Pass through Height : 9.05 in. (23cm) Spread Length Accuracy : .11 in. (+/- 3mm) Edge Alignment Accuracy : .07 in. (+/- 2mm) Roll Diameter - Maximum : 20 in. (50 cm) Roll Weight Capacity : 265 lbs. (120 kg)
