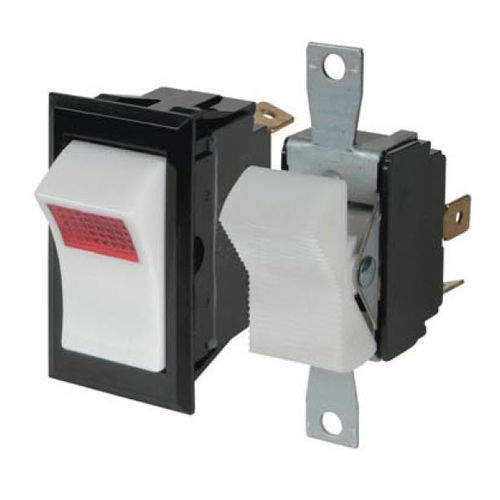

rocker switch / single-pole / illuminated / electromechanical
Eaton Commercial Controls

{{requestButtons}}

Characteristics

  • Type:

    rocker

  • Number of poles:

    single-pole

  • Other characteristics:

    illuminated, electromechanical

  • Protection level:

    waterproof

  • Current:

    Min.: 10 A

    Max.: 22 A

  • Voltage:

    Min.: 125 V

    Max.: 250 V

Description

The Sealed Rockette attribute a silicon rubber seal to protect contacts and mechanism. Base to frame seal and actuator seal supplied resistance to contaminants like moisture, sand and dust. Easy snap-in mount into distinct panel thickness for additional convenience. Both non illuminated and illuminated rockette versions are procurable. On illuminated models, the lamp is wired to work in conjunction with the switch on single throw circuits, while on double throw circuits the lamp is separated of the switch. Additional features, with paddle actuators and reversing jumpers as well as two pole illuminated circuit capabilities, special voltage bulb and reversing jumpers.
