automatic feeding system
AFS100, ASF180 EchoLAB

Add to MyDirectIndustry favorites
automatic feeding system automatic feeding system - AFS100, ASF180
{{requestButtons}}

Characteristics

  • Options:

    automatic

Description

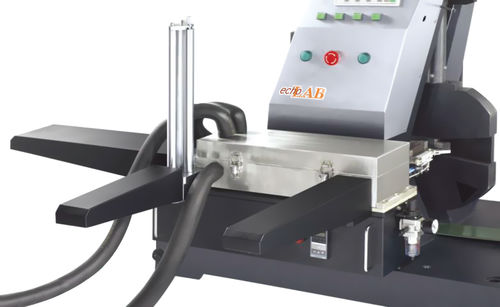

>>ITM-S and ITM-MP series can be upgraded with two types of automatic specimen feeding systems, AFS100 with capacity to test 40 specimens and ASF180 with capacity to test 12 specimens.
>>Systems can be connected also with three types of automatic cooling chambers
>>1) Specimens rack can accommodate 40 or 12 specimens
>>>2) When used in combination with low temperature chamber, the charging system automatically place the specimen from the rack to cooling chamber and, after set temperature will be reached, take out the sample and placing to the anvil
>>>3) Specimen positioning system automatically center the specimen automatically. After striking, the pendulum automatically rises to starting position for the next impact test, meanwhile the broken specimen is tacked out by the collection and filtering device.
The time of automatic test cycle, including the cooling process, is around to 10 seconds.
