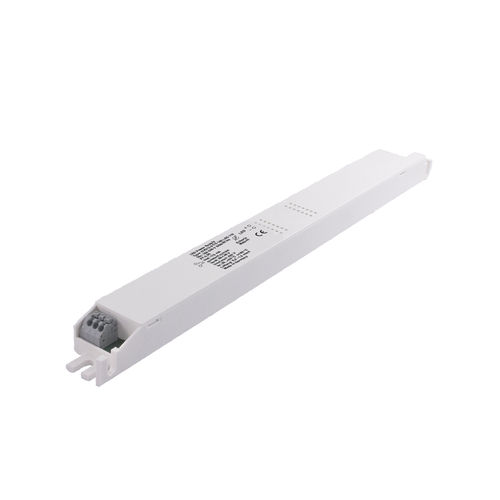

LED electronic ballast EVD12 0175 140 L6G 110

Item number: 7703000091 Application LED driver for general lighting, e.g. workplace lighting in offices, labs or production facilities. Description With a power range of max. 25 W, this constant current driver offers the ideal operating conditions and therefore a maximum lifespan for your LED applications Technical data Special feature - temperature monitoring in standby Dimensions (L x W x H in mm) - 322x28x20,5 Output current (mA) - 175 Operating mode - constant current no Efficiency (%) - up to 90 Assembly - fixing holes Temperature range (° C) - 0-20 to +50 Protective circuit - neutral protection, short circuit protection emergency light - yes Input voltage (V) - 90-264VAC / 90-285VDC Protection class - SK1 Protection class - IP20 Certification - CE Burst voltage (kV) - 4 Shock resistance (kV) - 2 Service life (h) - 100.000 @ tc=65°C Power (W) 25 Output voltage (V) - 80 - 140
