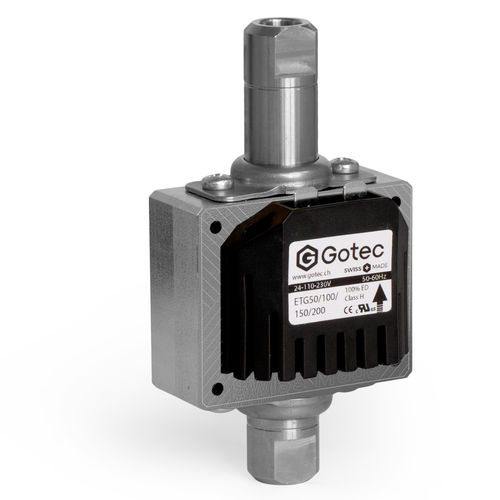

Oil pump ET_50_100_150_200
electricpistonindustrial

oil pump
oil pump
Add to favorites
Compare this product


Characteristics

Fluid
oil
Operation
electric
Technology
piston
Domain
industrial, medical
Applications
control, cleaning, transport
Other characteristics
suction, automatic
Flow

65 l/h
(17.17118 us gal/h)

Pressure

20 bar
(290.075 psi)

Description

Application Electromagnetic pumps are used to transport neutral and aggressive liquids. They feature a simple structure and excellent reliability. They have been performing brilliantly in all kinds of applications such as air-conditioning technology, oil transport technology, stage technology and also medical technology. They also offer users a wealth of important advantages in the cleaning and food industry: • Maintenance-free • Automatic pressure limitation • No shaft seals • Robust, industrial designs • Suitable for permanent operation • Tiny footprints Description The ET_50_100_150_200 are piston pumps for higher pressures. The coil, piston, suction and pressure connections are produced in various designs and materials. Spring-loaded valves on the intake and output side allow the pump to aspirate easily during operation. It is possible to operate the pump not only at mains frequency, but also through frequency regulation or pulsed control. Technical data Max. delivery volume (l/h) - 20-65 Differential pressure (bar) - 20 Viscosity range approx. (cSt.) from - 1 Viscosity range approx. (cSt.) to - 600 Min. filtration (µm) - 100 Ambient temperature approx. (°C) - 1-50 Medium temperature approx. (°C) - 70 Diameter of connections (mm) - POM, stainless steel with hose- and thread connection (inner thread metric with gas) Seals / valves - NBR, EPDM, Silikon, HNBR, FKM, FFKM Max. power consumption (VA) - 45 Weight approx. (gr.) - 560 Available voltages (V) - 24, 110, 230 Special voltages - on demand Electrical connection - Terminal Dimensions (L x W x H in mm) - 114x60x51,5
