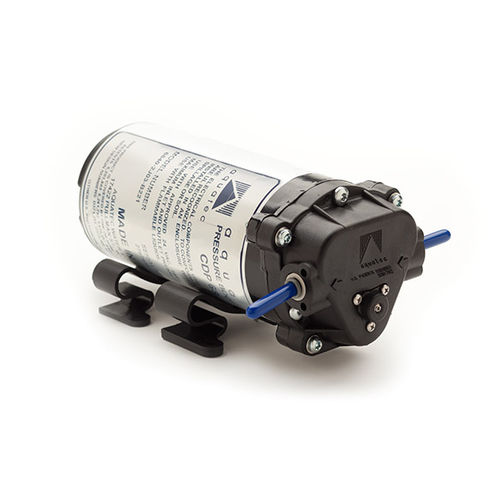

Water pump CDP6800

electriccentrifugalindustrial

Application Aquatec membrane pumps are extremely low-noise and low-vibration and have been developed and produced since 1987 by Aquatec, the leading manufacturer in this sector. They are suitable for use in all kinds of areas of application in agriculture, water purification, medical technology, cleaning technology and air-conditioning technology. Description The CDP6800 pressure pump is supplied as standard with an integrated and adjustable bypass valve. This is used to secure the pump as well as to safeguard the entire system. Technical data Max. delivery volume (l/h) - 40-50 Differential pressure (mbar) - 7 Differential pressure (bar) - 7 Viscosity range approx. (cSt.) from - 1 Viscosity range approx. (cSt.) to - 100 Ambient temperature approx. (°C) - 0-50 Medium temperature approx. (°C) - 75 Diameter of connections (mm) - 1/4" John Guest cartridge (further connections on demand) Material in contact with medium - PA, EPDM, Santopren (further combinations on demand) Total length (mm) - 195 (depending on version) Total length (mm) - 195 (depending on version) Max. power consumption (VA) - 14 Weight approx. (gr.) - 2500 Available voltages (V) - 12, 24, 110, 230 Special voltages - on demand Electrical connection - cable connection
