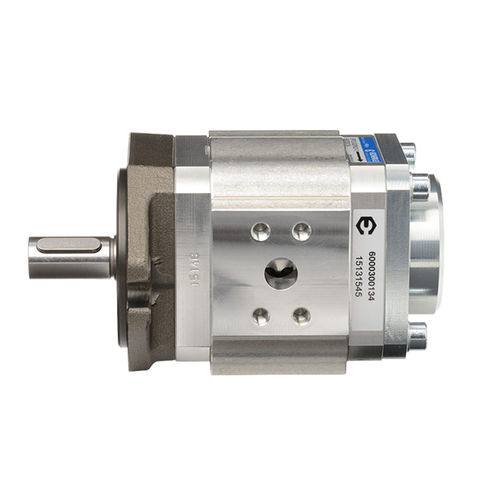

Internal-gear hydraulic pump EIPC3-050RK23-1x
aluminumfor industrial applicationshigh-pressure

internal-gear hydraulic pump
internal-gear hydraulic pump
internal-gear hydraulic pump
Add to favorites
Compare this product


Characteristics

Type
internal-gear
Material
aluminum
Applications
for industrial applications
Other characteristics
high-pressure, high-efficiency, low-noise, with speed controller
Pressure

Min.: 250 bar
(3,626 psi)

Max.: 280 bar
(4,061 psi)

Speed

1,800 rpm
(11,310 rad.min-1)

Description

Application Press technology, general Machine tool industry, Paper industry, Conveyor and lifting technology, Plastic and rubber injection technology, Energy-efficient speed-controllable servo drives. Description The EIPH and EIPS2-S111 series were developed especially for use in industry and its rigorous demands on hydraulics. The pumps in this series are the result of our decades of experience in the development of internal gear systems. They feature especially low-noise operation, excellent levels of efficiency and long service lives at high pressures. Technical data Pump volume (l/min) at 1,500 rpm - 75 Nominal size - 50 Vth - specific volume (cm³/rev) - 50.3 Max. speed (rpm) - 1800 Permanent operating pressure (bar) - 250 Peak operating pressure (bar) (range) - 280 Wave end - cylindrical
