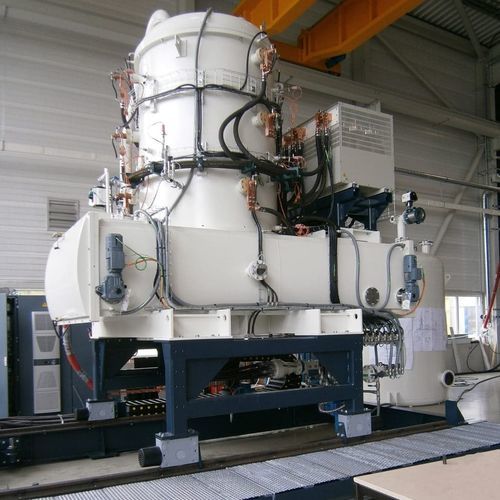

Oil quenching furnace PFTH series
quenchingcarburizingcarbonitriding

oil quenching furnace
oil quenching furnace
oil quenching furnace
Add to favorites
Compare this product


Characteristics

Function
quenching, hardening, carburizing, carbonitriding, oil quenching, for low-pressure carburizing
Configuration
chamber, pit
Heat source
electric
Atmosphere
vacuum, controlled atmosphere
Other characteristics
automatic, high-temperature, vertical, graphite, large-size, industrial, for metallurgy, for steel, for aeronautical applications
Maximum temperature

Max.: 1,350 °C
(2,462 °F)

Min.: 0 °C
(32 °F)

Height

1,500 mm, 1,800 mm
(59.06 in, 70.87 in)

Depth

900 mm, 1,500 mm
(35.43 in, 59.06 in)

Description

Our PFTH furnace is particularly adapted to the treatment of large size parts mainly found in aeronautical applications, such as landing gears. This vertical vacuum oil quenching furnace is also present in other industries that need to process heavy loads or long shafts. This fully automated installation is specifically recommended for perfect reproducibility of results and increased productivity. PFTH design relies on 4 main features: 1. A high-temperature furnace (up to 1350°C) using low pressure carburizing solutions developed by ECM Technologies. 2. A high-efficiency oil quenching tank with cold water double-wall and integrated propellers. 3. An oil buffer tank, fully integrated underground in order to save floor space . 4. A mechanized elevator system, fast load transfer cycles. An original motorized clamp system supports the load in the furnace. POSSIBLE APPLICATIONS Low pressure carburizing Oil quenching under vacuum Tempering
