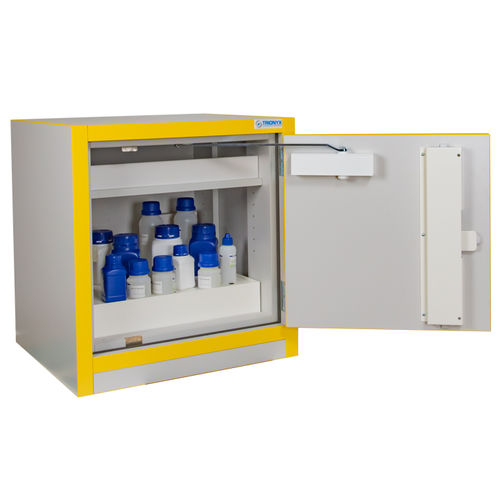

workshop cabinet / benchtop / double-door / single-door
3030 series Ecosafe S.A.

{{requestButtons}}

Characteristics

  • Type:

    workshop

  • Mounting:

    benchtop

  • Construction:

    double-door, single-door

  • Other characteristics:

    fire-resistant

  • Product applications:

    for flammable products

  • Width:

    605 mm, 864 mm, 1,092 mm, 1,115 mm

  • Height:

    635 mm, 1,198 mm, 1,731 mm, 1,980 mm

  • Depth:

    457 mm, 550 mm, 630 mm, 864 mm

Description

- Tested and approved Type 30 according to EN 14470-1 (04-2004)
and EN 1363-1 (06-2000).
- (1)Tested and approved Type 10 minutes according to FM 6050
(Factory Mutual internationnal).
- Normalized labelling according to ISO 3864 and EN 14470-1 (04-
2004) norms, 92/58/CEE european directive and FM regulations.
ADVANTAGES
- 30-minute fire resistance according to ISO 834 fire heating curve.
- Pedestal area under-driveable by a forklift by removing panel
(except for the under-bench models).
- Self-closing doors with possibility to keep the door(s) open.
If the temperature rises to 47°C, a fuse link closes the door(s)
automatically.
PASSIVE SECURITY
- Built in melamine : overall good chemical resistance.
- Grey structure (RAL 7035), yellow edges (RAL 1023).
- Safety labelling as per EN 14470-1.
- Containment shelves adjustable in height (step every 32 mm).
- Removable bottom containment sump
