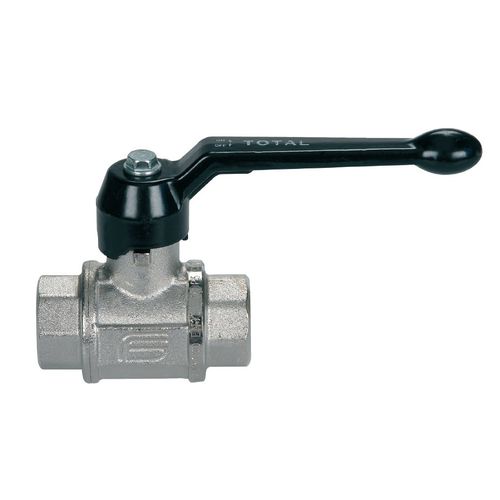

Ball valve TOTAL series

leverdistributionfor water

TECHNICAL FEATURES: Temperature limits: for fluids from –20°C to + 130°C Pressure limits: for fluids from 100 bar to 40 bar SPECIFIC FEATURES: Bore: full. Stem: security system with self-adjusting gland. Seats: high resistance virgin PTFE. Upper seal: DSS4® Dynamic Sealing System (international patent) 4 anti-friction self-adjusting cone-shaped seals, in PTFE and dynamic seals. Ideal system to ensure long life cycles, high and low pressure, and vacuum (tested at 1•10-2 mbar). Application fields: The TOTAL series is extremely tough and is used where special performance is required, for example in the installations of gas and water distribution, industrial and civil heating, water plants at medium and high pressure, hydraulics and pneumatics, oil and petrochemical fields, non aggressive fluids, and vacuum (tested at 1•10-2 mbar). • On request available in without Grease version. Threaded end connections: • Standard female and male according to UNI ISO 7/1 (UNI EN 10226). • On request NPT and BSPT. Operation devices: Aluminium lever, aluminium T-handle, square cap, underground adaptor, lockable sealing cap from 3/4”. Available colours: black, red, yellow. All the valves comply with the regulation 97/23/CE and are tested 100% on pneumatic seal with electronic control.
