Indexing turning chuck MD series
automatic2-jawmachining

indexing turning chuck
indexing turning chuck
indexing turning chuck
indexing turning chuck
Add to favorites
Compare this product


Characteristics

Type
automatic
Number of jaws
2-jaw
Other characteristics
machining, steel, hydraulic, high-precision, indexing
Outer diameter

Min.: 160 mm
(6 in)

Max.: 550 mm
(22 in)

Description

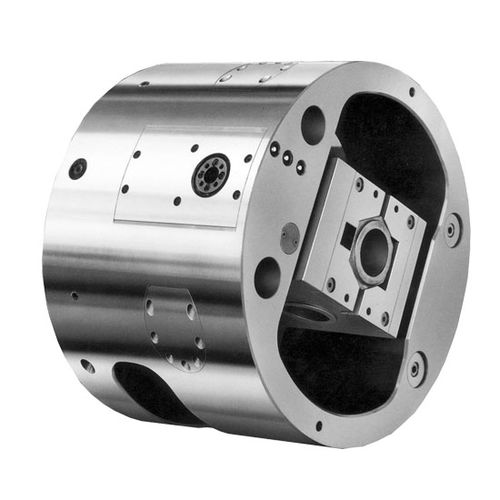

MD is an automatic indexing chuck with hydraulic clamping and indexing. It is not self-centering. ADVANTAGES • made in special high resistance hardened and cementing 60HRC steel UNI18NiCrMo5, to maintain a high degree of precision, reliability and quality • indexing movement (tecnomors patent) simple reliable with only a piston that works in rotation and in clamping position. Indexing precision ± 1’ • guiding system of clamping and of the indexing mechanism. This system uses 2 pre-loaded solid straight roller radially and 1 axial bearing • seals against contamination by coolant, chips or dust • constant and long lasting precision • easy installation to the machine • the chuck is connected to the rear rotating oil manifold thanks to the nest tube. This tube system is supplied with grinding hardened steel clutchs • centrifugal force compensation system for parts susceptible to deformations to obtain an higher productivity performance • indexing control device • a good automation system level grows using robot to load and to unload workpieces • indexing process is possible also in rotation position to allow a fast indexing position passage. The rotation speed has to be not at the maximum power • indexing takes, with position control, approx. 2-4 seconds per 90°, depending on the size of the chuck • very simple hydraulic system based on 2 indexing mechanism ports, 2 clamping pistons ports and 1 manifold drain • the chucking piston is connected to a safety device and keeps the working securely gripped in the jaws even in the event of a complete pressure loss

Catalogs

MD_MDE
MD_MDE
52 Pages
