self-centering vise / for machine tools / hydraulic / horizontal
HIR series Effecto Group S.p.A.

{{requestButtons}}

Characteristics

  • Applications:

    for machine tools

  • Operation:

    hydraulic

  • Configuration:

    horizontal, vertical

  • Other characteristics:

    precision, self-centering, machining

  • Max. clamping force:

    Max.: 24,717 N

    Min.: 8,855 N

  • Stroke:

    Max.: 41 mm

    Min.: 11 mm

Description

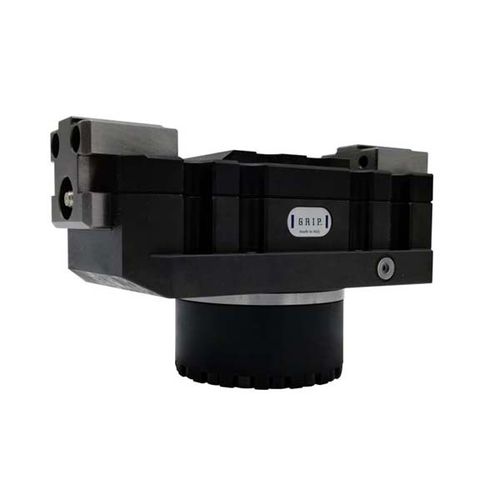

Self-centering vise with wedge-hook mechanism and hydraulic drive, machine table embedded – 2 jaws
HIR
Precision recessed chuck with low cycle time. HIR is ideal for simple hydraulic xture plates, 5th Axis trunion xtures
on Vertical Machining Centers, or hydraulic Tombstone xtures for Horizontal Mills. Chuck is recessed in the table to reduce side play and improve clamping rigidity.
VANTAGGI
• Inclined plan powered by an hydraulic system.
• Pressure: Hydraulic system: up to 60 bar; 200 bar on request.
• Caseharden and hardened steel; grinding nishing on sliding components.
• Made to work in dirty and dusty environment thanks to pressurization, scraper and clearance system to prevent or limit the ingress of foreign bodies.
