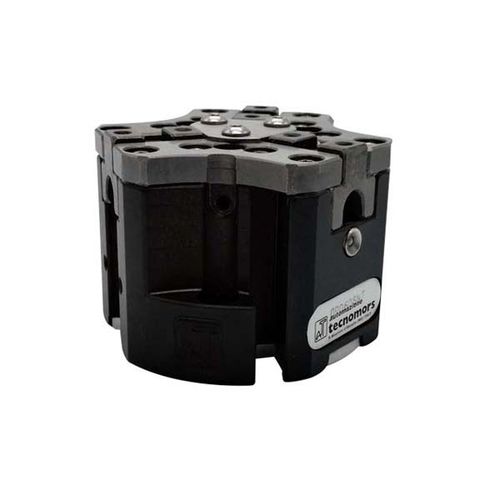

Pneumatic gripper QPG seriesparallelhandlingprecision
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- parallel
- Application
- handling
- Options
- precision, lightweight, 3 fingers
- Grip strength
Min.: 321 N
Max.: 28,029 N
- Stroke
Min.: 2 mm
(0.079 in)Max.: 30 mm
(1.181 in)
Description
QPG is a universal three-finger centric gripper featuring high repeatability and long service life, suitable for a wide range of industrial applications.
ADVANTAGES
Robust and lightweight housing made of hard-coated aluminum alloy.
Sturdy T-slot with hardened steel gibs for effective jaw guidance, precise handling, and easy maintenance.
Compact dimensions for minimal impact in space sensitive applications.
Mounting from one side in two screw directions for versatile and flexible integration.
Integrated permanent magnets for direct monitoring of piston movement.
Slots for mounting and positioning of magnetic-field sensors.
Air supply via hose-free direct connections or fitting screw connections.
Operating pressure 2 – 8 bar
Ambient temperature 5-60°C
Sound emissions (sound pressure) ≤ 70 db (A) in each direction
