Monitoring camera system ASI-16

CMOSPoEHD

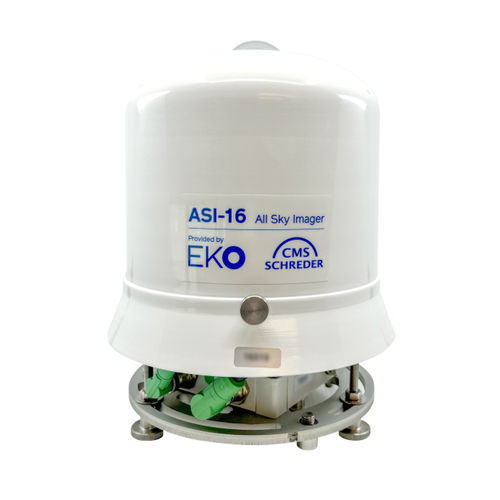

Automatic All Sky Camera Integrated Ventilator & Heater The ASI-16 All Sky Imager is an all-weather automatic 'All Sky' camera. With an integrated ventilator & heater system, the ASI-16 captures live video and full hemispheric pictures of the sky, whatever the conditions. Integrated Ventilator & Heater Onboard Data Acquisition Unit External Temperature & Relative Humidity Sensor 5MP Fisheye Camera with 180 field of view Real-time video & picture stream, up to 2-10 1/sec Cloud Base Height (CBH) & Cloud Motion Functions The ASI-16 All Sky Imager is an automatic camera system with a 180° field of view, utilising a 5MP camera and 'fisheye' lens with an anti-reflective, airflow protected, quartz dome. An integrated ventilator and heater system, dual side surge protection, and wide operating temperature, among other features, position the ASI-16 as one of the most reliable all-sky cameras available, suitable for use anywhere on earth. Developed by CMS-Schreder, the ASI-16 All Sky Imager is recommended and sold worldwide by EKO for remote sensing, weather and cloud observations, atmospheric research, supervision systems, aircraft-based observation systems, and other applications. The system can be used for cloud coverage and cloud type analysis, with cloud base height (CBH) and cloud motion functions. It delivers high-resolution HDR images of the sky and clouds as pre-scheduled network stored JPGs and as a live video stream. It's also a powerful cloud detector and can also take clear full hemispheric pictures of the sky during daylight, even under full sunlight conditions.
