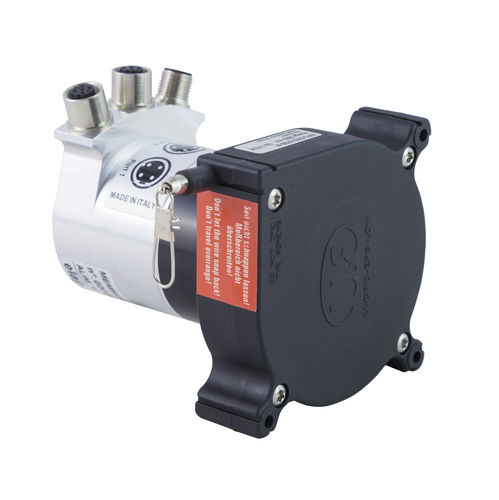

Absolute draw-wire encoder WPS

29-bitmulti-turnEthernet/IP

Wire transducers series WPS are composed by the draw-wire mechanics coupled to Elap multiturn absolute high-resolution encoder MEM-BUS or MEM. They can provide different communication protocols – EtherNet/IP, EtherCAT, PROFINET, Profibus, CANopen or SSI output signal. The encoder grants high resolutions values (28 or 29 bit) and stroke 2300 mm. The housing is out of glass fiber reinforced nylon, whilst the wire consists of coated poliamide stainless steel. Accurate, stout, and easy to install, wire transducers are the ideal solution for industrial applications requiring long strokes and high precision: typical applications are: X-Y tables, hydraulic and pnematic cylinders, packing machines, wood-, glass-, marble-, sheet-working machineries. Technical features: •Stroke 2300 mm •Glass fiber reinforced nylon housing •Coated poliamide stainless steel wire •Wire diameter :0.45 mm •Wire acceleration :5 g •Wire retraction force (min.):3 N •Wire extension force (max):9 N •Mechanical shock (10 ms):50 G 10 ms •Vibration (20÷2000 Hz):20 g 20 Hz 2KHz •Operating temperature:-40 ÷ +85°C •Stocking temperature:-40 ÷ +85°C
