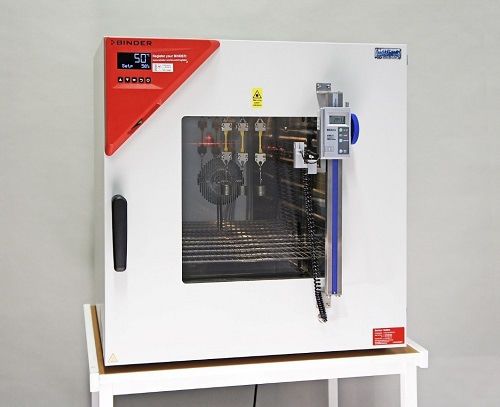

The EB 30 Hot Set Oven Basic is made for hot set testing of cable material according to IEC 60811-507 and technically equivalent standards.
It is built on a heating cabinet with window in the door. The inner chamber of stainless steel is equipped with illumination. Measurements are made through the window with a laser pointer that is mounted on a measuring scale placed on the door. The line laser will automatically shut off when the door is opened.
All measurements can be inserted in a spreadsheet template (included) for calculation of both the weight necessary for each sample, and for the hot set test result.
4 different templates are included and ready for installation on your computer (Windows) for the usage in the spreadsheet software. The templates are for testing 3 flat samples, 3 round samples, 4 flat samples with possibility to have 2 different materials, and 4 round samples with possibility to have 2 different materials. These templates will generate a test report. Also included in the purchase are 4 hooks to hang the samples on as well as weights and clamps for 4 samples.
Standards
The oven performs well inside the apparatus requirements in IEC 60811-507 and technically equivalent standards.
Temperature range
+40 °C to +200 °C
Useful volume
116 litres
Important specifications
Temperature variation in time ± 0,3 °C
Temperature variation in space ± 1,3 %
Temperature controller with 1 °C setpoint
Solid state relay for safe control
Over temperature safety relay
Laser pointer for measuring the elongation
Cooling channels in the casing for low surface temperature
