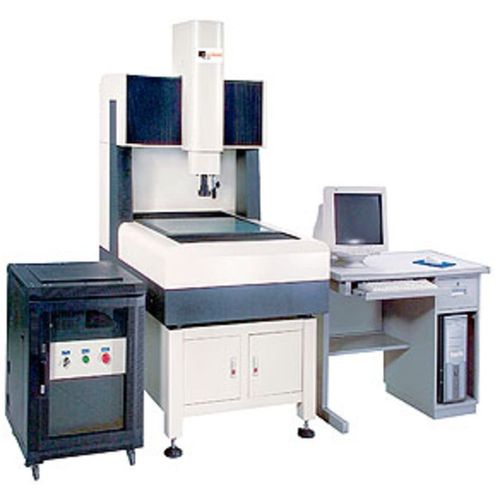

CNC surface measuring machine CNC ELBO series
opticalvisual

CNC surface measuring machine
CNC surface measuring machine
CNC surface measuring machine
Add to favorites
Compare this product


Characteristics

Technology
optical, visual
Other characteristics
CNC

Description

The CNC ELBO Measurement Machines cover the High Range of the Product Range. They are avalaible in two versions that make possible to cover a wide range of travel measurements. They are high quality, precision and reliable Instruments already produced in hundreds of units. The generously designed mechanical structure, the attention to the details, the first class components that have been used and a flexible and complete software make them very attractive from the Quality vs Price point of view. •2D Visual Measurement Machines with Image processing for high precision measurements; •CNC operations for both “Measurement Path” acquisition and routine Measurement Operations; •Illumination Systems (for both Profile and Surface) can be choked (4 sectors of 90° each); •High resolution and ultra low distortion lenses; •Final Magnifications from 20x to 125x; (Optical Magnifications 0,7x - 4,5x; 1/3” CCD; 17” Video); •ELBO Software as a standard. It is anyway possible to load other VMM Software from the Market; •SPC: it is possible to prepare and cutomize any type of Statistical Process Report.
