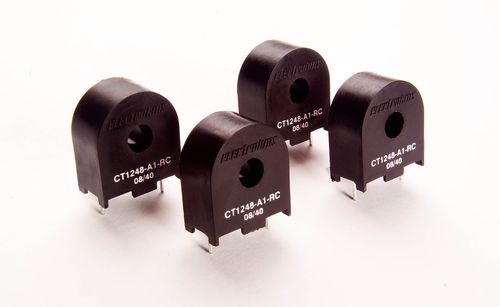

Current transformer CT1248-A2-RCencapsulatedfor energy metersPCB
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- encapsulated
- Applications
- for energy meters
- Mounting
- PCB
- Other characteristics
- high-accuracy
- Primary current
10 A
Description
High End Metering Current Transformers High Accuracy Current Transformers for whole current measurements in energy metering .
KEY FEATURES
•High Precision AC whole current transformer
•Low Amplitude Error & Phase error
•High Linearity
•Temperature coefficient
RELATED APPLICATION
•Energy management
SPECIFICATION
Product NoCT1248-A2-RC
Ipn RMS(A)10
Turn Ratio1 : 1500
Pri. Opening (mm)5.0
Temp. Operating -40°C ... +70°C
Secondary TerminationPin Terminals
Mounting TypePCB
Rb (Ohms)75
AE %0.2
PE (Deg)0.5
DCR (Ohms)45 - 60
