Epoxy resin / encapsulation / high-temperature

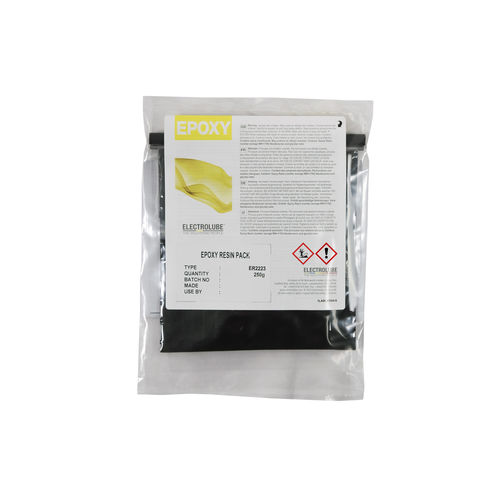

ER2223 ELECTROLUBE

Characteristics

  • Type:

    epoxy

  • Applications:

    encapsulation

  • Other characteristics:

    high-temperature

Description

ER2223 black epoxy resin has been specially formulated to meet the harsh operating conditions of under-hood applications in the automotive industry. It has excellent chemical resistance, including most fluids found in the engine compartment of vehicles or other mechanical applications offering superb protection to electronic components.

With an exceptionally wide operating temperature range of -40°C to +180°C ER2223 is also suited to a variety of other electronics applications exhibiting good resistance to thermal cycling found in engine compartments. Its low viscosity allows for easy potting of the smallest or tightly packaged components.

Key Properties:
Exceptionally wide operating temperature range
Highly chemical resistant
Low viscosity
Excellent adhesion to a wide variety of substrates.
Designed to meet the needs of Automotive applications
RoHS-2 Compliant
