nitrogen analyzer / oxygen / hydrogen / elemental

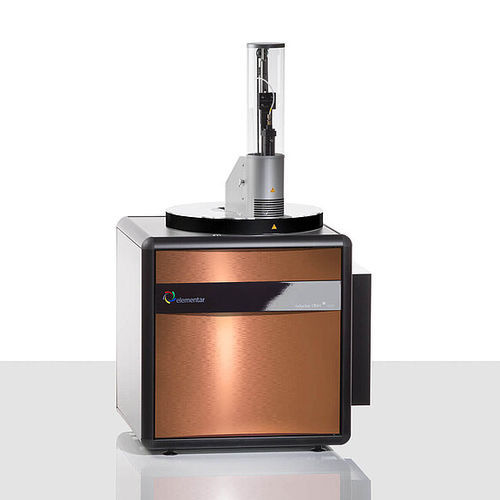

inductar® ONH cube Elementar



  • Measured entity:

    nitrogen, oxygen, hydrogen

  • Measured value:


  • Configuration:


  • Other characteristics:

    real-time, simultaneous, electrochemical


Simultaneous ONH elemental analysis in metals and ceramics

The inductar ONH cube is an innovative elemental analyzer, which is able to analyze oxygen, nitrogen and hydrogen concentrations in inorganic materials simultaneously. This high-precision ONH analyzer for metallic or ceramic materials uses only state-of-the-art technologies. It is equipped with a long-life solid-state high-frequency induction furnace, which makes it possible to reach sample temperatures of up to 3000 °C. Thanks to an optional camera the gas release can be observed in real-time by the operator. Also for the element detection advanced technologies are used. Oxygen is analyzed by a wide-range IR detector, which is capable to detect the whole concentration range. For the precise hydrogen analysis a unique electrochemical detection technology finds usage for the first time. The nitrogen analysis by a well-known thermal conductivity detector completes the precise and simultaneous 3-element analysis of oxygen, nitrogen and hydrogen in one cycle.

Innovative design and technology solutions for highest precision

The innovative design with its feeding system from top and intelligent gas flow direction reduces dust and debris to a minimum. This ensures high tidiness within the whole device, which makes any tedious cleaning operation unnecessary. Together with tool-free maintenance and intuitive, multi-language software, the inductar ONH cube is really easy to use. Moreover, the optional 90 position autosampler allows a fully automated high-throughput operation.
