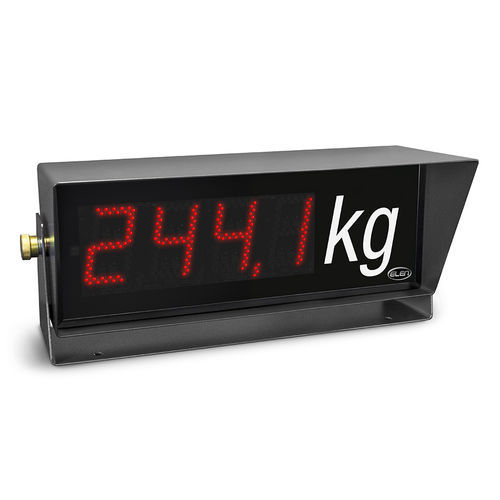

LED display NDI 100/4 R H65

numeric4-digitoutdoor

Application LED displays of the NDI 100/4 R H65 series are used in demanding industrial conditions and are intended for displaying numerical values of various measured physical quantities (weight, temperature, length, speed, etc.). Detailed information ultrabright eliptical LED elements suitable for outdoor applications; viewing angle 105° horizontally, 45° vertically; robust double-cover frame made of zinc-plated steel sheets; powder paint coated black finish; antiglare front cover made of dim 5 mm thick PMMA Perspex glass; vibration impact reduction by placing all internal electronics on flexible rubber silentblock; industrial grade data and power supply connector ensure reliable electrical connection; floated decimal point; besides standard communication interfaces RS232/RS485 other options are also available – Ethernet TCP/IP, Profibus, BCD 24V with galvanic input separation, LonWorks FTT-10A, analog inputs (0-10V, 0-20mA, 4-20mA, impuls counter) and others upon request; wide range of communication protocols – ELEN, Schenck DDP 8850, DDP 8861 (Disomat B, Disomat F), Intecont plus, Orbit Controls, LonTalk and others upon request; fixed label for units description as per customer request – °C, Kg, t, g, m/s, ot./min, etc.
